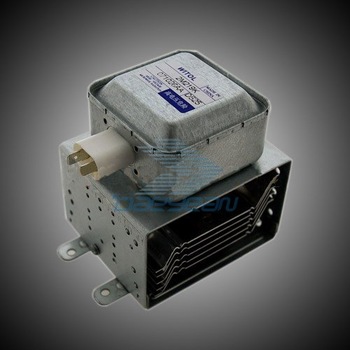

Witol Magnetron
Product Detail
Magnetron Tube model: 217series
Filament voltage: 3.3Vac
Filament current: 10±2Aac
Peak anode voltage: 3.9±0.2kV
Average anode current: 200mA
Frequency: 2456±10MHz
Output power: 580±30W
Magnetron Tube model: 218series
Filament voltage: 3.3Vac
Filament current: 10±2Aac
Peak anode voltage: 4.0±0.2kV
Average anode current: 300mA
Frequency: 2458±10MHz
Output power: 900±40W
Magnetron Tube model: 219series
Filament voltage: 3.3Vac
Filament current: 10±2Aac
Peak anode voltage: 4.2±0.2kV
Average anode current: 300mA
Frequency: 2458±10MHz
Output power: 945±40W
Magnetron Tube model: 319series
Filament voltage: 3.3Vac
Filament current: 10±2Aac
Peak anode voltage: 4.4±0.2kV
Average anode current: 320mA
Frequency: 2458±10MHz
Output power: 1050±40W
Magnetron Tube model: 339series (Inverter Series)
Filament voltage: 3.3Vac
Filament current: 10±2Aac
Peak anode voltage: 4.2±0.2kV
Average anode current: 300mA
Frequency: 2458±10MHz
Output power: 945±40W
In order to get in touch use the contact form below:
Founded in 2002, Daeyean is specialized in Microwave Parts. We supply Magnetron, High Voltage Transformer and other microwave parts for customers in the passed 14 years. We are the authorized distributor of SAMSUNG Magnetron, LG Magnetron and the appointed distributor of TOSHIBA Lighting and Panasonic Electronic Works. Relying on decades of experience in microwave field, we are now one of the most important suppliers for microwave parts in Asia.
