Witol Magnetron
Product Detail

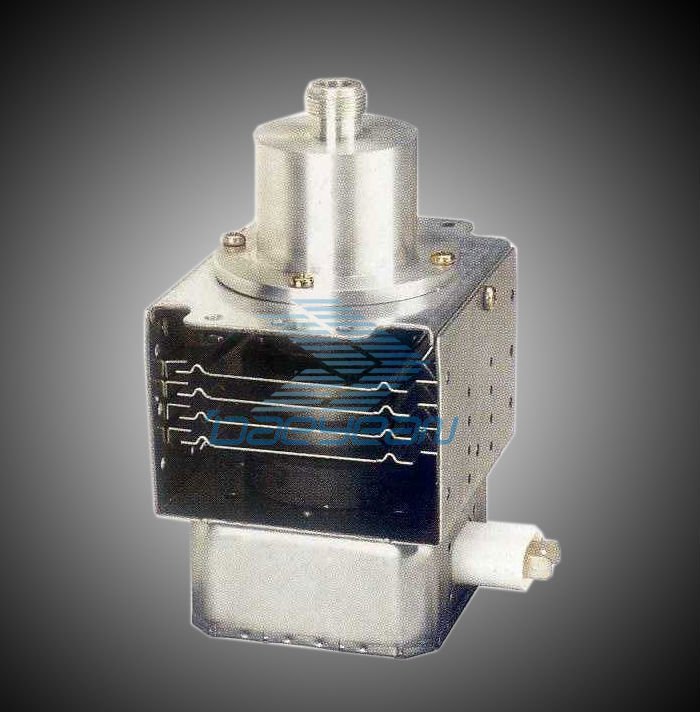

Magnetron Tube model: 301series (Coaxial output)
Filament voltage: 3.6Vac
Filament current: 11±2Aac
Peak anode voltage: 1.8±0.15kV
Average anode current: 200mA
Frequency: 2453±10MHz
Output power: 190±30W
Magnetron Tube model: 311series
Filament voltage: 3.6Vac
Filament current: 11±2Aac
Peak anode voltage: 1.8±0.15kV
Average anode current: 200mA
Frequency: 2453±10MHz
Output power: 190±100W
In order to get in touch use the contact form below:
Founded in 2002, Daeyean is specialized in Microwave Parts. We supply Magnetron, High Voltage Transformer and other microwave parts for customers in the passed 14 years. We are the authorized distributor of SAMSUNG Magnetron, LG Magnetron and the appointed distributor of TOSHIBA Lighting and Panasonic Electronic Works. Relying on decades of experience in microwave field, we are now one of the most important suppliers for microwave parts in Asia.
