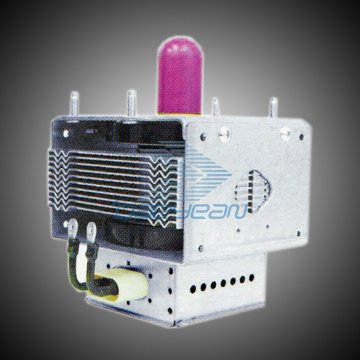

Panasonic Magnetron
Product Detail
Magnetron Tube model: 2M137 (Forced air-cooled)
Output Power: 1.3kW
Filament Voltage: 4.4Vac
Filament Current: 14Aac
Anode Voltage: 4.5V
Frequency: 2455MHz
Outline Dimension: 125x100x134mm
Weight: 1.2kg
Magnetron Tube model: 2M262 (Forced air-cooled)
Output Power: 1.5kW
Filament Voltage: 4.4Vac
Filament Current: 14Aac
Anode Voltage: 4.5V
Frequency: 2455MHz
Outline Dimension: 125x100x134mm
Weight: 1.4kg
Magnetron Tube model: 2M259 (Forced air-cooled)
Output Power: 2.0kW
Filament Voltage: 4.6Vac
Filament Current: 20Aac
Anode Voltage: 4.0V
Frequency: 2455MHz
Outline Dimension: 128x123x162mm
Weight: 2.3kg
Magnetron Tube model: 2M265 (Forced air-cooled)
Output Power: 3.0kW
Filament Voltage: 4.0Vac
Filament Current: 22Aac
Anode Voltage: 5.1V
Frequency: 2455MHz
Outline Dimension: 128x123x186mm
Weight: 3.0kg
Magnetron Tube model: 2M266 (Forced air-cooled)
Output Power: 3.0kW
Filament Voltage: 4.0Vac
Filament Current: 22Aac
Anode Voltage: 5.1V
Frequency: 2455MHz
Outline Dimension: 128x123x162mm
Weight: 1.9kg
