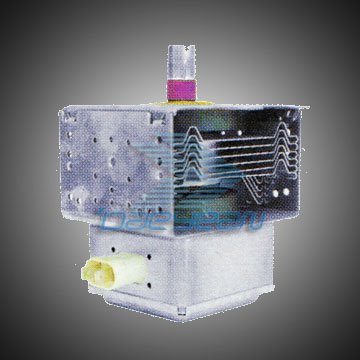

Panasonic Magnetron
Product Detail
Magnetron Tube model: 2M167B (Air-cooled)
Output Power: 0.9kW
Filament Voltage: 3.3Vac
Filament Current: 10Aac
Anode Voltage: 4.1V
Frequency: 2455MHz
Outline Dimension: 126x94x135mm
Weight: 0.8kg
Magnetron Tube model: 2M210 (Air-cooled)
Output Power: 0.9kW
Filament Voltage: 3.3Vac
Filament Current: 10Aac
Anode Voltage: 4.1V
Frequency: 2455MHz
Outline Dimension: 127x80x135mm
Weight: 0.8kg
Magnetron Tube model: 2M236 (Air-cooled)
Output Power: 0.9kW
Filament Voltage: 3.3Vac
Filament Current: 10Aac
Anode Voltage: 4.1V
Frequency: 2455MHz
Outline Dimension: 127x80x129mm
Weight: 0.8kg
Magnetron Tube model: 2M244 (Air-cooled)
Output Power: 1.0kW
Filament Voltage: 3.15Vac
Filament Current: 10Aac
Anode Voltage: 4.4V
Frequency: 2455MHz
Outline Dimension: 127x80x135mm
Weight: 0.8kg
Magnetron Tube model: 2M261 (Air-cooled)
Output Power: 1.0kW
Filament Voltage: 3.3Vac
Filament Current: 10Aac
Anode Voltage: 4.5V
Frequency: 2455MHz
Outline Dimension: 126x94x135mm
Weight: 0.8kg
In order to get in touch use the contact form below:
Founded in 2002, Daeyean is specialized in Microwave Parts. We supply Magnetron, High Voltage Transformer and other microwave parts for customers in the passed 14 years. We are the authorized distributor of SAMSUNG Magnetron, LG Magnetron and the appointed distributor of TOSHIBA Lighting and Panasonic Electronic Works. Relying on decades of experience in microwave field, we are now one of the most important suppliers for microwave parts in Asia.
